Ricoh

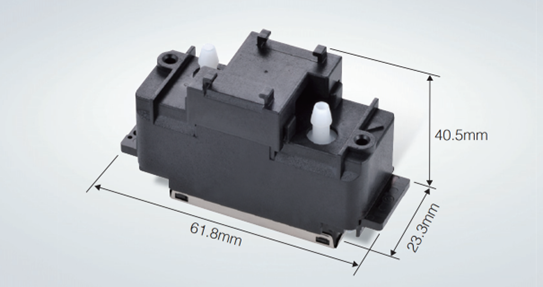

RICOH GH2220
Технические параметры :
|
Method
|
Piston pusher with metallic diaphragm plate
|
|
Print Width
|
32.4 mm(1.28")
|
|
Number of nozzles
|
384
|
|
Nozzle spacing (Within a row)
|
1/150"(0.1693 mm)/row
|
|
Nozzle spacing (Row to row distance)
|
0.931 mm
|
|
Compatible ink
|
Aqueous, Solvent
|
|

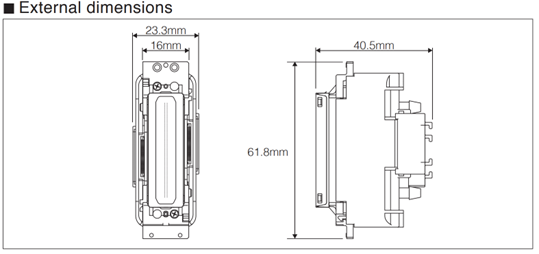

Total printhead dimensions
|
61.8(W) × 40.5(D) × 23.3(H) mm (2.43" × 1.59" × 0.92")
|
|
Weight
|
36 g
|
|
Max.number of color inks
|
2 colors
|
|
Temperature control
|
No heater or thermistor
|
|
Life
|
30 billion actuations per nozzle
|
|
Jetting frequency
|
Binary mode : 30kHz / Grey-scale mode : 24kHz
|
|
Drop volume
|
Binary mode : 3-5pl / Grey-scale mode : 21±2pl
|
|
Viscosity range
|
8±0.5mPa･s(@25℃)
|
|
Surface tension
|
25±5mN/m (@23±2℃)
|
|
Maximum gray scale
|
4 levels * depends on ink characteristics
|
|

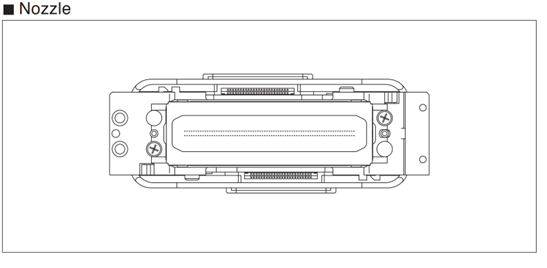

Alignment mechanism
|
Frame-abutting
|

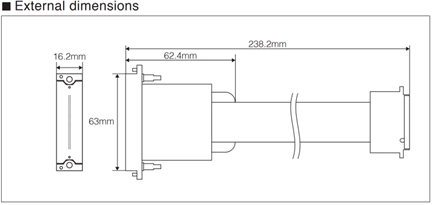

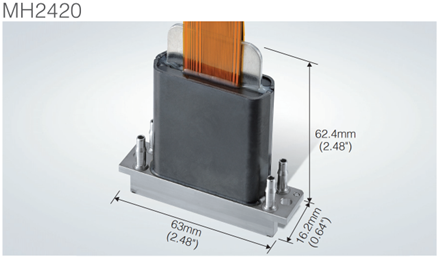

RICOH MH2420
Технические параметры :
|
Method
|
Piston pusher with metallic diaphragm plate
|
|
Print Width
|
32.4 mm(1.28")
|
|
Number of nozzles
|
384 (2 × 192 channels), staggered
|
|
Nozzle spacing (Within a row)
|
1/150"(0.1693 mm)/row
|
|
Nozzle spacing (Row to row distance)
|
0.529 mm
|
|
Compatible ink
|
UV, Solvent, Aqueous, Others
|
|
Total printhead dimensions
|
63(W) × 62.4(D) × 16.2(H) mm (2.48" × 2.48" × 0.64") excluding cables
|
|
Weight
|
73 g
|
|
Max.number of color inks
|
2 colors
|
|
Operating temperature range
|
Up to 60℃
|
|
Temperature control
|
Integrated heater and thermistor
|
|
Jetting frequency
|
Binary mode : 30kHz / Grey-scale mode : 20kHz
|
|
Drop volume
|
Binary mode : 7pl / Grey-scale mode : 7-35pl *depending on the ink
|
|
Viscosity range
|
10-12 mPa•s
|
|
Surface tension
|
28-35mN/m
|
|
Grey-scale
|
4 levels
|
|
Total Length
|
238.2 mm (standard) including cables
|
|
Ink port
|
Yes (standard) / No (optional)
|
|
Number of ink ports
|
2 × dual
|
|

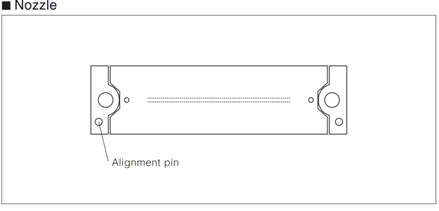

Alignment pin direction
|
Front (standard) / Back (optional)
|

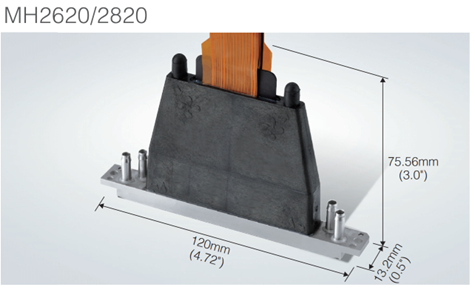

RICOH MH2620/2820
Технические параметры :
|
Method
|
Piston pusher with metallic diaphragm plate
|
|
Print Width
|
64.9 mm(2.6")
|
|
Number of nozzles
|
384 (2 × 192 channels), staggered
|
|

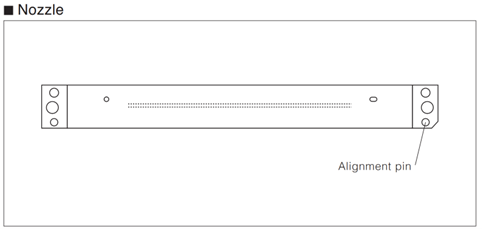

Nozzle spacing (Within a row)
|
1/75"(0.339 mm)
|
|
Nozzle spacing (Row to row distance)
|
0.9948 mm
|
|
Compatible ink
|
UV, Solvent, Aqueous, Others
|
|

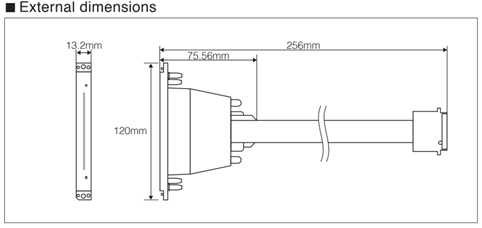

Total printhead dimensions
|
120(W) × 75.56(D) × 13.2(H) mm (4.72" × 3.0" × 0.5") excluding cables
|
|
Weight
|
108 g
|
|
Max.number of color inks
|
2 colors
|
|
Operating temperature range
|
Up to 80℃
|
|
Temperature control
|
Temperature control
|
|
Drop volume/Jetting frequency
|
MH2620 : 15pl - 30kHz, 30pl - 20kHz, 45pl - 14kHz *depending on the ink. MH2820 : 27pl - 30kHz, 54pl - 20kHz *depending on the ink
|
|
Viscosity range
|
11-13 mPa•s
|
|
Surface tension
|
28-35mN/m
|
|
Grey-scale
|
4 levels 3 levels
|
|
Total Length
|
256 mm (standard) including cables
|
|
Ink port
|
Yes (standard) / No (optional)
|
|
Number of ink ports
|
1 color : 1 × dual / 2 colors: 2 × dual
|
|
Alignment pin direction
|
Front (standard) / Back (optional)
|

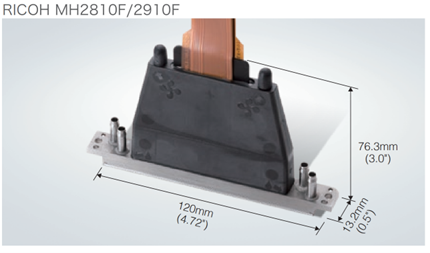

RICOH MH2810F/2910F
Технические параметры :
|
|
RICOH MH2810F
|
RICOH 2910F
|
|
Method
|
Piston pusher with metallic diaphragm plate
|
|
Print Width
|
64.861mm
|
|
Number of nozzles
|
384 (2 × 192 channels), staggered
|
|
Nozzle spacing (1 color printing)
|
1/150"(0.1693 mm)
|
|
Nozzle spacing (Row to row distance)
|
0.9948 mm
|
|
Compatible ink
|
UV, Solvent, Aqueous, Others. Able to handle heavy loaded pigmented inks
|
|

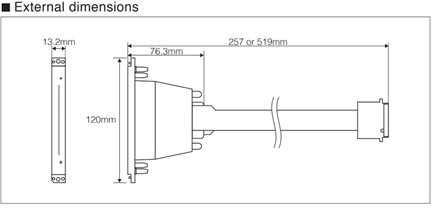

Total printhead dimensions
|
120(W) × 13.2(D) × 76.3(H) mm (4.72" × 0.52" × 3") excluding cables & connectors
|
|
Weight
|
126 g
|
|
Ink color
|
Monochrome
|
|
Operating temperature range
|
Up to 80℃
|
Up to 60℃
|
|
Temperature control
|
Integrated heater and thermistor
|
|
Life
|
100 billion actuations per nozzle
|
|
Jetting frequency*
|
Binary mode : 30kHz / Grey-scale mode : 20kHz
|
Binary mode : 24kHz / Grey-scale mode : N/A
|
|
Drop volume*
|
Binary mode : 27pl / Grey-scale mode : 27 to 50pl
|
Binary mode : 50pl / Grey-scale mode : N/A
|
|
Viscosity range
|
10-15 mPa•s
|
|
Surface tension
|
28-35mN/m
|
|
Grey-scale
|
4
|
|
Total Length
|
256mm or 518mm including cables
|
|
Ink port
|
Hose Barb or O-Ring
|
|
Number of ink ports
|
4 Ports (2×IN / 2×OUT)
|
|

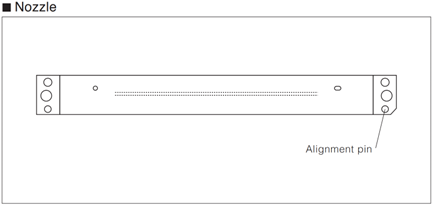

Head to head alignment pin direction
|
Front or Back
|
RICOH MH2420
Технические параметры :
| |
RICOH MH5220
|
|
Method
|
Piston pusher with metallic diaphragm plate
|
|
Print Width
|
54.1 mm(2.1"
|
|
Number of nozzles
|
1,280 (4 × 320 channels), staggered
|
|
Nozzle spacing
|
1/150"(0.1693 mm
|
|
Nozzle spacing A (Row to row distance)
|
0.93 mm
|
|
Nozzle spacing B (Upper and lower swath distance
|
9.31mm
|
|
Compatible ink
|
UV
|
|
Total printhead dimensions
|
89(W) × 64.2(D) × 24.7(H) mm (3.5" × 2.5" × 1.0") excluding cables & connector
|
|
Weight
|
148 g
|
|
Max.number of color inks
|
2 colors
|
|
Operating temperature range
|
Up to 60℃
|
|
Temperature control
|
Integrated heater and thermistor
|
|
Life
|
100 billion actuations per nozzle
|
|
Jetting frequency
|
30kHz
|
|
Drop volume
|
Binary mode: 2.5pl / Grey-scale mode : 2.5-9pl *depending on the ink
|
|
Viscosity range
|
10-12 mPa•s
|
|
Surface tension
|
28-35mN/m
|
|
Gray-scale
|
4 levels
|
|
Ink port
|
Yes
|
|
Number of ink ports
|
2 × dual ports
|
|
Alignment pin direction
|
Front (standard)
|
|
Separately sold parts
|
MH5220 dedicated cable
|

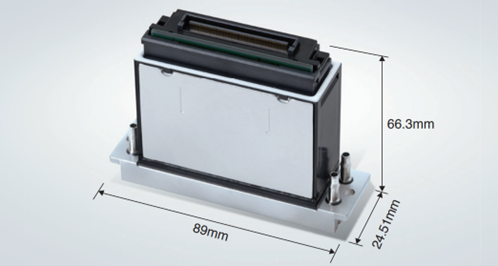

RICOH MH5320-5340
Технические параметры :
| |
RICOH MH5320
|
RICOH MH5340
|
|
Method
|
Piston pusher with metallic diaphragm plate
|
|
Print Width
|
54.1 mm (2.1")
|
|
Number of nozzles
|
1,280 (4 × 320 channels), staggered
|
|
Nozzle spacing (4 color printing)
|
1/150"(0.1693 mm)
|
|

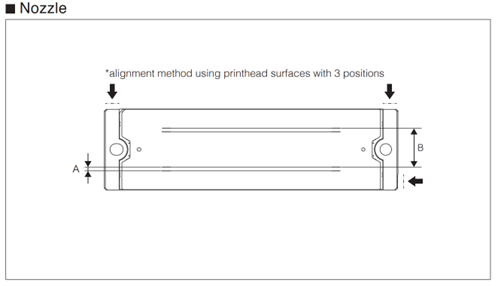

Nozzle spacing (Row to row distance)
|
A : 1.101mm B : 11.811mm
|
|
Compatible ink
|
UV, Solvent, Aqueous, Others.
|
|

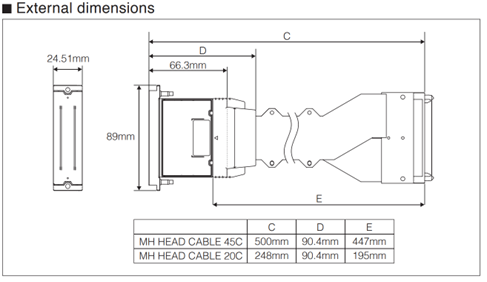

Total printhead dimensions
|
89(W) × 66.3(D) × 24.51(H) mm (3.5" × 2.6" × 1.0")
|
|
Weight
|
228g (including 45C cable)
|
|
Max.number of color inks
|
2 colors MH5320 Type A 4 colors MH5340 4 colors
|
|
Operating temperature range
|
60℃
|
|
Temperature control
|
Integrated heater and thermistor
|
|
Jetting frequency
|
50kHz (3 levels) 40kHz (4 levels)
|
|
Grey-scale
|
4 levels
|
|
Drop volume
|
Binary mode : 5pl / Grey-scale mode : 5-15pl
|
|
Viscosity range
|
10～12mPa・s
|
|
Surface tension
|
28～35mN/m
|
|
Ink port
|
Yes
|
|
Separately sold parts
|
MH5320 / MH5340 / MH5320 Type A dedicated cable
|

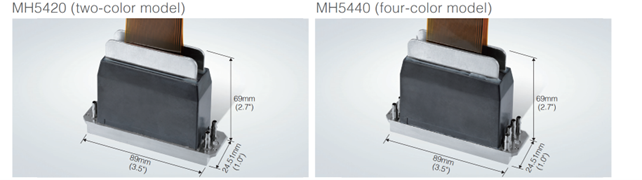

RICOH MH5420-5440
Технические параметры :
| |
RICOH MH5420
|
RICOH MH5440
|
|
Method
|
Piston pusher with metallic diaphragm plate
|
|
Print Width
|
54.1 mm (2.1")
|
|
Number of nozzles
|
1,280 (4 × 320 channels), staggered
|
|
Nozzle spacing (4 color printing)
|
1/150"(0.1693 mm)
|
|
Nozzle spacing (Row to row distance)
|
0.55 mm
|
|
Compatible ink
|
UV, Solvent, Aqueous, Others.
|
|

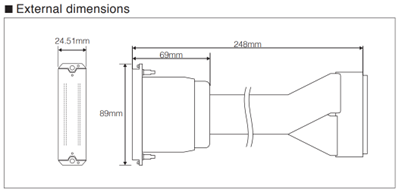

Total printhead dimensions
|
9(W) × 69(D) × 24.51(H) mm (3.5" × 2.7" × 1.0") excluding cables & connectors
|
|
Weight
|
155 g
|
|
Max.number of color inks
|
2 colors
|
4 colors
|
|
Operating temperature range
|
Up to 60℃
|
|
Temperature control
|
ntegrated heater and thermistor
|
|
Jetting frequency
|
Binary mode : 30kHz / Grey-scale mode : 20kHz
|
|
Grey-scale
|
4 levels
|
|
Drop volume
|
Binary mode: 7pl / Grey-scale mode : 7-35pl *depending on the ink
|
|
Viscosity range
|
10-12 mPa•s
|
|
Surface tension
|
28-35mN/m
|
|
Ink port
|
yes
|
|
Number of ink ports
|
MH5420 : 2 × dual ports / MH5440 : 4 × dual ports
|
|
Nozzle spacing (Upper and lower swath distance)
|
11.81mm
|

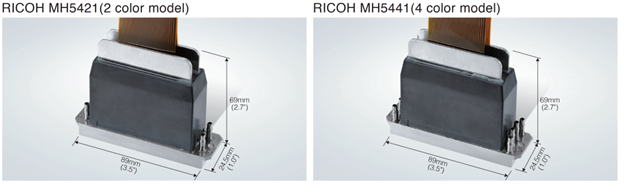

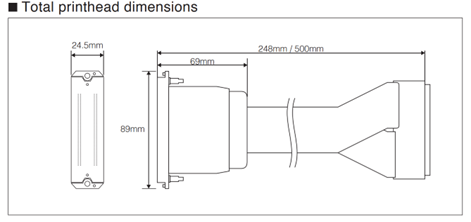

RICOH MH5421-5441
Технические параметры :
| |
RICOH MH5421
|
RICOH MH5441
|
|
Method
|
Piston pusher with metallic diaphragm plate
|
|
Print Width
|
54.1mm
|
|
Number of nozzles
|
1280 (4 x 320 channels), staggered 1/150” (0.1693mm)
|
|
Nozzle spacing
|
1/150” (0.1693mm)
|
|
Nozzle spacing (Row to row distance)
|

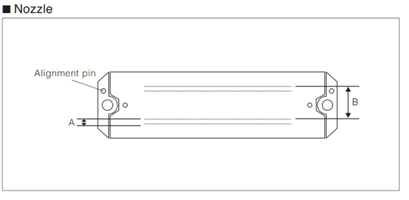

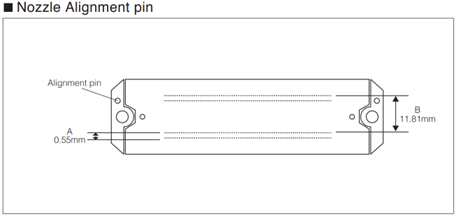

A: 0.55mm B:11.81mm (See illustration below)
|
|
Compatible ink
|
Aqueous ink
|
|
Total printhead dimensions
|
89(W) × 69(D)× 24.51(H)mm (3.5" × 2.7" × 1.0") *excluding cables & connectors
|
|
Weight
|
155g *excluding cables & connectors
|
|
Max.number of color inks
|
2 colors
|
4 colors
|
|
Operating temperature range
|
Up to 50℃
|
|
Temperature control
|
Integrated heater and thermistor
|
|
Jetting frequency
|
30kHz
|
|
Grey-scale
|
4 levels (depending on the ink characteristic)
|
|
Drop volume
|
7/14/21pl (depending on the ink)
|
|
Viscosity range
|
11mPa・s
|

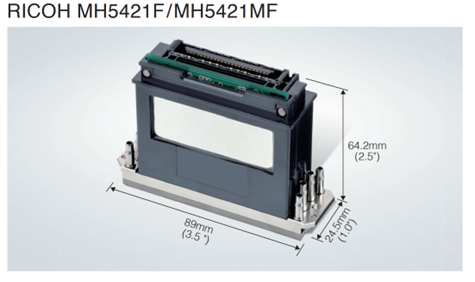

RICOH MH5421F/ MH5421MF
Технические параметры :
| |
RICOH MH5421F
|
RICOH MH5421MF
|
|
Method
|
Piston pusher with metallic diaphragm plate
|
|
Print Width
|
54.1mm
|
|
Number of nozzles
|
1280 (4 x 320 channels), staggered
|
|
Nozzle spacing
|
1/150” (0.1693mm)
|
|
Nozzle spacing (Row to row distance)
|

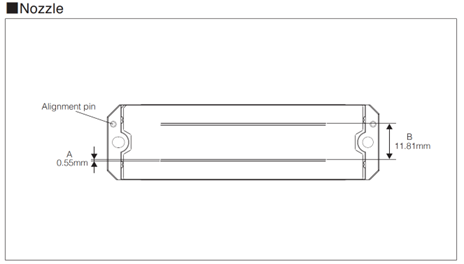

A: 0.55mm B:11.81mm (See illustration below
|
|
Compatible ink
|
UV, Solvent, Aqueous, others
|
|
Total printhead dimensions
|
89(W) × 64.2(D) × 24.5(H) mm (3.5" × 2.7" × 1.0")
|
|
Weight
|
149g
|
|
Max.number of color inks
|
2 colors
|
|
|
Operating temperature range
|
Up to 60℃
|
|
Temperature control
|
Integrated heater and thermistor
|
|
Jetting frequency
|
30kHz
|
|
Grey-scale
|
4 levels (depending on the ink characteristic)
|
|
Drop volume
|
7/14/21pl (depending on the ink)
|
|
Viscosity range
|
11mPa・s
|
6mPa・s
|

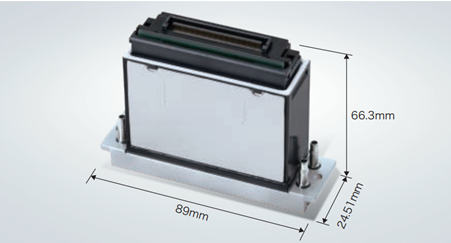

RICOH MH5422-5442
Технические параметры :
| |
RICOH MH5422
|
RICOH MH5442
|
|
Method
|
Piston pusher with metallic diaphragm plate
|
|
Print Width
|
54.1 mm (2.1")
|
|
Number of nozzles
|
1,280 (4 x 320 channels), staggered
|
|
Nozzle spacing
|
1/150" (0.1693 mm)
|
|
Nozzle spacing (Row to row distance)
|
A：1.101mm B：11.811mm
|
|
Compatible ink
|
UV, Solvent, Aqueous, Others.
|
|

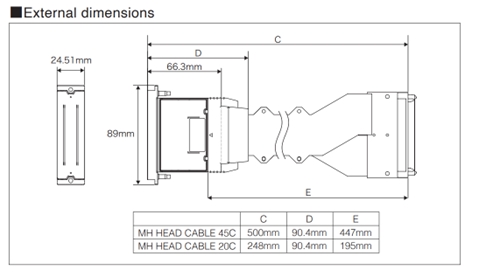

Total printhead dimensions
|
89(W) x 24.51(D) x 66.3(H) mm (3.5" x 1.0" x 2.6")
|
|
Weight
|
228g (including 45C cable)
|
|
Max.number of color inks
|
2 colors
|
4 colors
|
|
Operating temperature range
|
60℃
|
|
Temperature control
|
Integrated heater and thermistor
|
|
Jetting frequency
|
50kHz (2 levels : binary） 30kHz（4 levels）
|
|
Grey-scale
|
4 levels
|
|
Drop volume
|
Binary mode : 7pl Grey-scale mode : 7-21pl
|
|
Viscosity range
|
10～12mPa・s
|
|
|
Surface tension
|
28～35mN/m
|
|
Ink port
|
Yes
|
|
Number of ink ports
|
|
|
Nozzle spacing (Upper and lower swath distance)
|
|

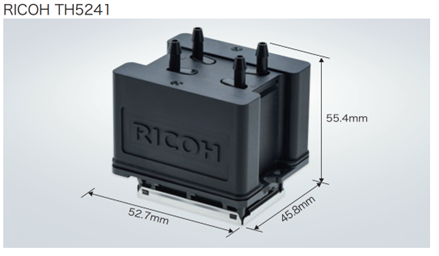

RICOH TH5241
Технические параметры :
| |
RICOH TH5241
|
|
Method
|
Thin-film piezoelectric transducer with bend mode
|
|
Print Width
|
27.1 mm (1.06")
|
|
Number of nozzles
|
1280 (320 nozzles/row x4 rows, staggered)
|
|
Nozzle Resolution
|
600npi(2 colors, 1 color) 300npi(4 colors)
|
|

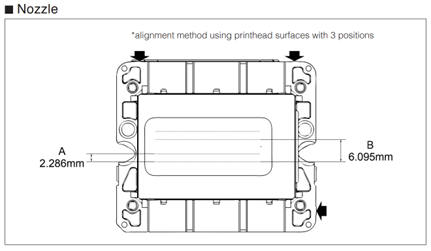

Nozzle spacing (Row to row distance)
|
A : 2.286mm B : 6.095mm
|
|
Compatible ink
|
UV, Solvent, Aqueous, Others
|
|
Total printhead dimensions
|

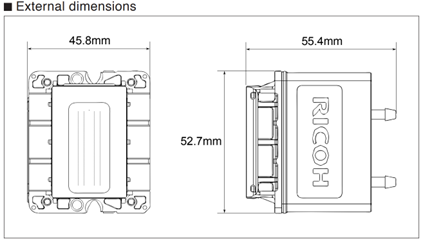

W：52.7mm D：45.8mm H：55.4mm
|
|
Weight
|
63g
|
|
Max.number of color inks
|
4 colors
|
|
Operating temperature range
|
40℃
|
|
Temperature control
|
Integrated thermistor, without heater
|
|
Jetting frequency
|
40kHz (2 levels) 24kHz (4 levels)
|
|
Grey-scale
|
4 levels
|
|
Drop volume
|
3pl (Single drop) 3～12pl (max 21pl) (Multi drop)
|
|
Viscosity range
|
7ｍPa・s
|
|
Surface tension
|
27±5mN/m
|

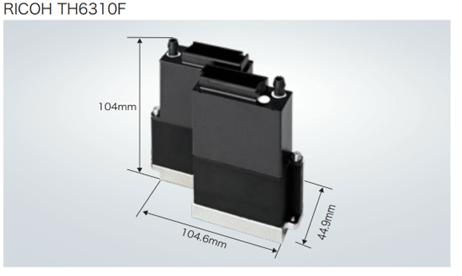

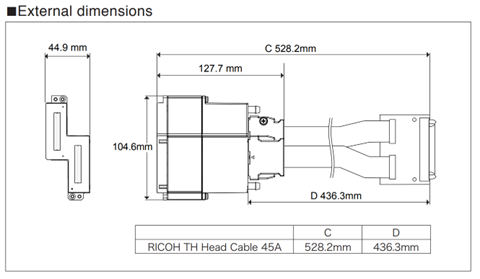

RICOH TH6310F
Технические параметры :
| |
RICOH TH6310F
|
|
Method
|
Thin-film piezoelectric transducer with bend mode
|
|
Print Width
|
66.7mm
|
|
Number of nozzles
|
1,600 (8 × 100 channels × 2 Modules), staggered（Net: 1,576）
|
|
Nozzle Resolution
|
600npi
|
|

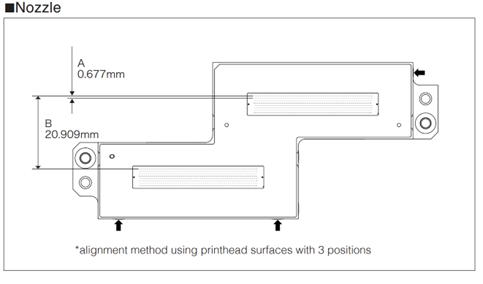

Nozzle spacing (Row to row distance)
|
A: 0.677mm (8 pixels of 600npi) B: 20.909mm (494 pixels of 600npi)
|
|
Compatible ink
|
Aqueous, UV, Solvent, Others
|
|
Total printhead dimensions
|
W : 104.6mm D : 44.9mm H : 104mm
|
|
Weight
|
374g
|
|
Max.number of color inks
|
1 color
|
|
Operating temperature range
|
60℃
|
|
Temperature control
|
Integrated thermistor, heater
|
|
Jetting frequency
|
80kHz（2 levels） 60kHz（3 levels） 40kHz（4 levels）
|
|
Grey-scale
|
4 levels
|
|
Drop volume
|
5pL(Single drop) 5 ～ 18pL（Multi drop）
|
|
Viscosity range
|
5.5mPa・s
|
|
Surface tension
|
31.6±5mN/m
|
|
Separately sold parts
|
TH6320F dedicated cable
|
|
Ink circulation structure
|
O
|
Екафлекс © Все права защищены.
Дата публикации: 23-03-2023
(875 прочтений)
[ Вернуться назад ] |
